DJI Zenmuse H20 - Dji CP.ZM.00000119.01

Name: DJI Zenmuse H20 - Dji CP.ZM.00000119.01
Brand: Dji
SKU: CP.ZM.00000119.01
Price: 3850 USD
Availability: InStock

Manufacturer: Dji

Drone Model:DJI Zenmuse

Camera Category:Drone Cameras

Country of Manufacture:China

SKU CP.ZM.00000119.01

| UPC 190021016668

| EAN 6958265100963

Cameras

Store, Cameras, Drone Cameras

No votes yet

$3,850.00

Tabs

Description

DJI Zenmuse H20 - Dji CP.ZM.00000119.01

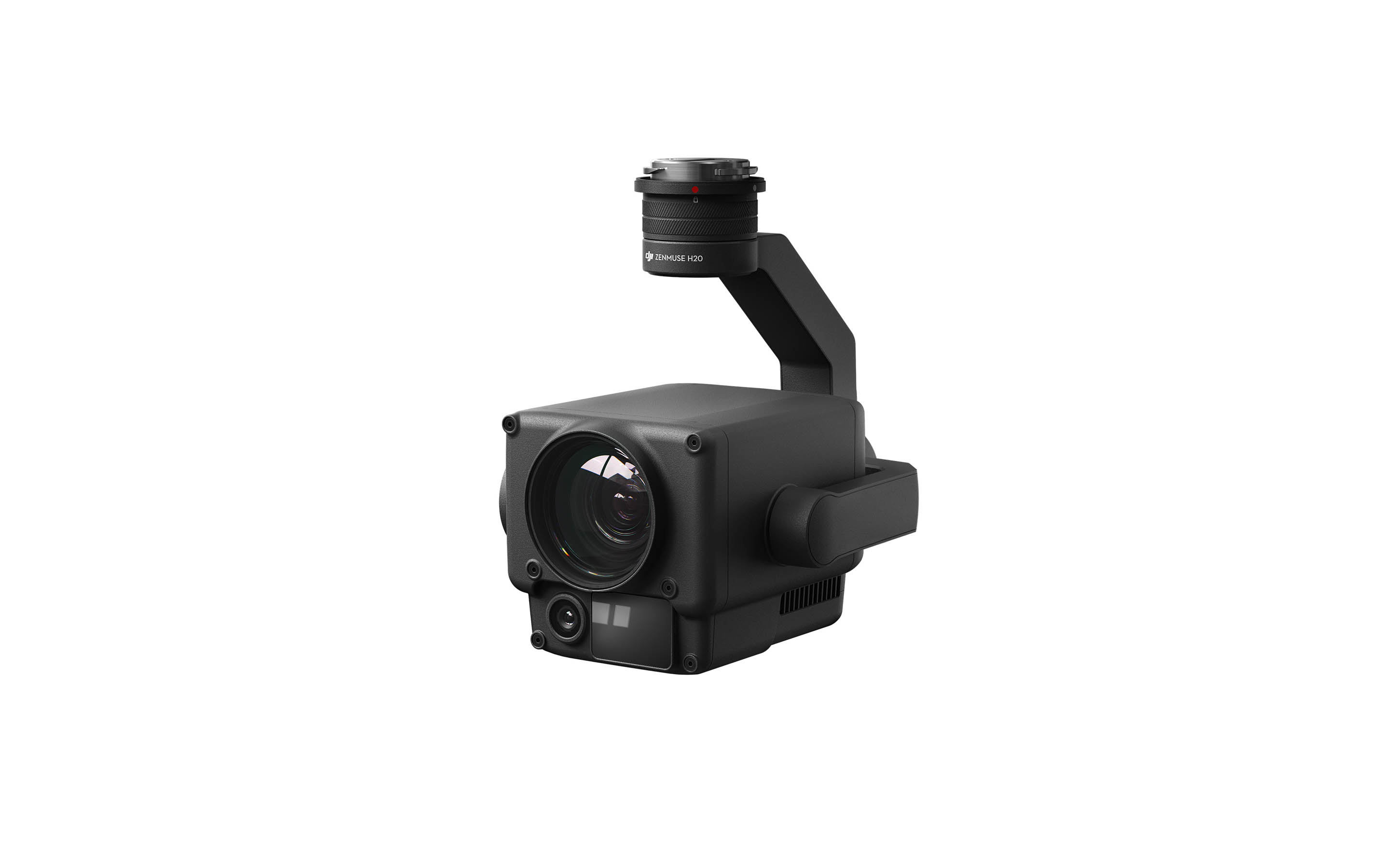

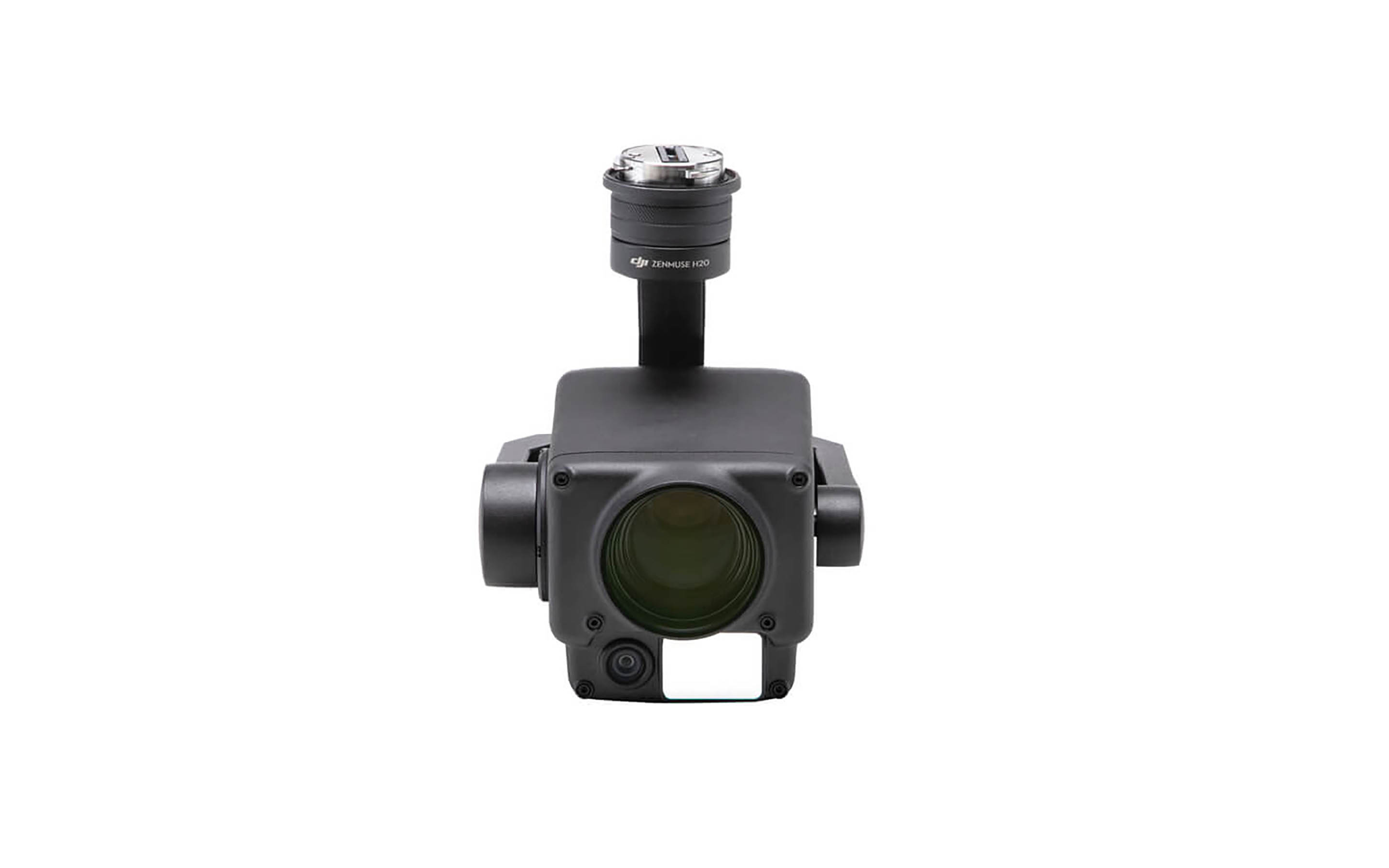

The DJI Zenmuse H20 package has a Camera (no lens needed) and a Gimbal. Compatible with all versions of the DJI Matrice 300. The camera has 3 sensors: a wide camera (12MP), a zoom camera (20MP), and a laser rangefinder (1200m range). This Zenmuse version is with the DJI Care Enterprise Basic plan.

HIGHLIGHTS

SKU: CP.ZM.00000119.01
DJI Zenmuse H20 models:
- DJI Zenmuse H20 SP (DJI Care Enterprise Basic)
- DJI Zenmuse H20 SP PLUS (DJI Care Enterprise Plus)
Package includes:
- Camera
- Gimbal
- Storage Case
- Lens cleaning cloth
The camera has 3 sensors:
- Wide Camera - 12MP 1/2.3" CMOS
- Zoom Camera - 20MP 1/1.7" CMOS
- Laser RangeFinder - 3/4 mile, 1200m range
Compatible with DJI Matrice drones:
- Matrice 300 RTK - Dji CP.EN.00000221.01
- DJI Matrice 350 RTK - Dji CP.EN.00000468.01
- DJI Matrice 350 RTK H20T Kit - Dji CP.EN.00000522.01
Other DJI Matrice 300 accessories:
- DJI Matrice 300 RTK TB60 Intelligent Flight Battery - Dji CP.EN.00000262.01
- Zenmuse L2 - Dji CP.EN.00000505.01
- DJI Zenmuse L1 - Dji CP.EN.00000330.01
- DJI Zenmuse P1 - Dji CP.ZM.00000136.01
- DJI Zenmuse H20T - Dji CP.ZM.00000121.01

Last updated on Friday, March 13, 2026 - 15:06

Specification

Gimbal
Angular Vibration Range		+/-0.01 Degree
Mount		Detachable
Controllable Range		Pitch: -120 Degree to +30 Degree Yaw: +/-320 Degree
Mechanical Range		Pitch: -132.5 Degree to +42.5 Degree Yaw: +/-330 Degree Roll: -90 Degree to +60 Degree

General
Ingress Protection Rating		IP44
Operating Temperature		-20 Degree to 50 Degree C (Temperature Measurement is only available between -10 Degree to 50 Degree C)
Storage Temperature		-4 to 140 Degree F (-20 to 60 Degree C)
Laser Safety		Class 1M (IEC 60825-1:2014)
Supported Aircraft		Matrice 300 RTK
Dimensions		Zenmuse H20: 5.96 x 4.48 x 5.94" (150 114 151mm)
Weight		Zenmuse H20: 23.9 oz (678.5g)

Zoom Camera
Sensor		1/1.7" CMOS, 20 MP
Lens		DFOV: 66.6 Degree -4 Degree Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm) Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene) Focus: 1 m to Infinite (wide), 8 m to Infinite (telephoto)
Focus Mode		MF/AF-C/AF-S
Exposure Mode		Auto, Manual
Exposure Compensation		+/-3.0 (1/3 increments)
Metering Mode		Spot metering, Center-weighted metering
AE LOCK		Supported
Electronic Shutter Speed		1 - 1/8000 s
ISO Range		Video: 100 - 25600 Photo: 100 - 25600
Video Resolution		3840x2160@30fps 1920x1080@30fps
Video Format		MP4
Video subtitles		Supported
Photo Size		5184 x 3888
Photo Format		JPEG

Wide Camera
Sensor		1/2.3" CMOS, 12 MP
Lens		DFOV: 82.9 Degree Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to Infinite
Exposure Mode		Auto
Exposure Compensation		+/-3.0 (1/3 increments)
Metering Mode		Spot metering, Center-weighted metering
AE LOCK		Supported
Shutter Speed		1 - 1/8000
ISO Range		Video: 100 - 25600 Photo: 100 - 25600
Video Resolution		1920 x 1080@30fps
Video Format		MP4
Video subtitles		Supported
Photo Size		4056 x 3040
Photo Format		JPEG

CLaser Rangefinder
Wavelength		905 nm
Measurement range		3-1200 m (to a vertical surface with >=12m diameter and 20% reflection rate)
Measurement accuracy		+/- (0.2 m + D x0.15%) D is the distance to a vertical surface

Features
Hybrid Optical Zoom		23 x
Max. Zoom		200 x
One Click Capture		One-click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
Point to Aim		Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
High-Res Grid Photo		Frame an area of interest in a wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night Scene		Supported (zoom camera)
Timestamp		Including GPS, date, and time

Storage
Supported SD Card		MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems		FAT32 (<= 32 GB), exFAT (> 32 GB)
Recommended Micro SD Cards		TOSHIBA EXCERIA PRO 32GB micro SD HC II SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I TOSHIBA EXCERIA PRO 64GB micro SD XC II SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I SAMSUNG_EVO_128GB_micro SD 3 XC I TOSHIBA EXCERIA M303E 32GB micro SD HC I TOSHIBA EXCERIA M303E 64GB micro SD XC I TOSHIBA EXCERIA M303E 64GB micro SD XC I TOSHIBA EXCERIA M303 128GB micro SD XC I SAMSUNG_EVO_64GB_micro SD 3 XC I

In the Box

Accessories	DJI Zenmuse H20 - Dji CP.ZM.00000119.01
Zenmuse H20 Gimbal & Camera	x1
SanDisk Extreme microSD Card 32GB	x1
Storage Case	x1
Lens Cleaning Cloth	x1
