DJI Zenmuse H20N - Dji CP.ZM.00000145.01

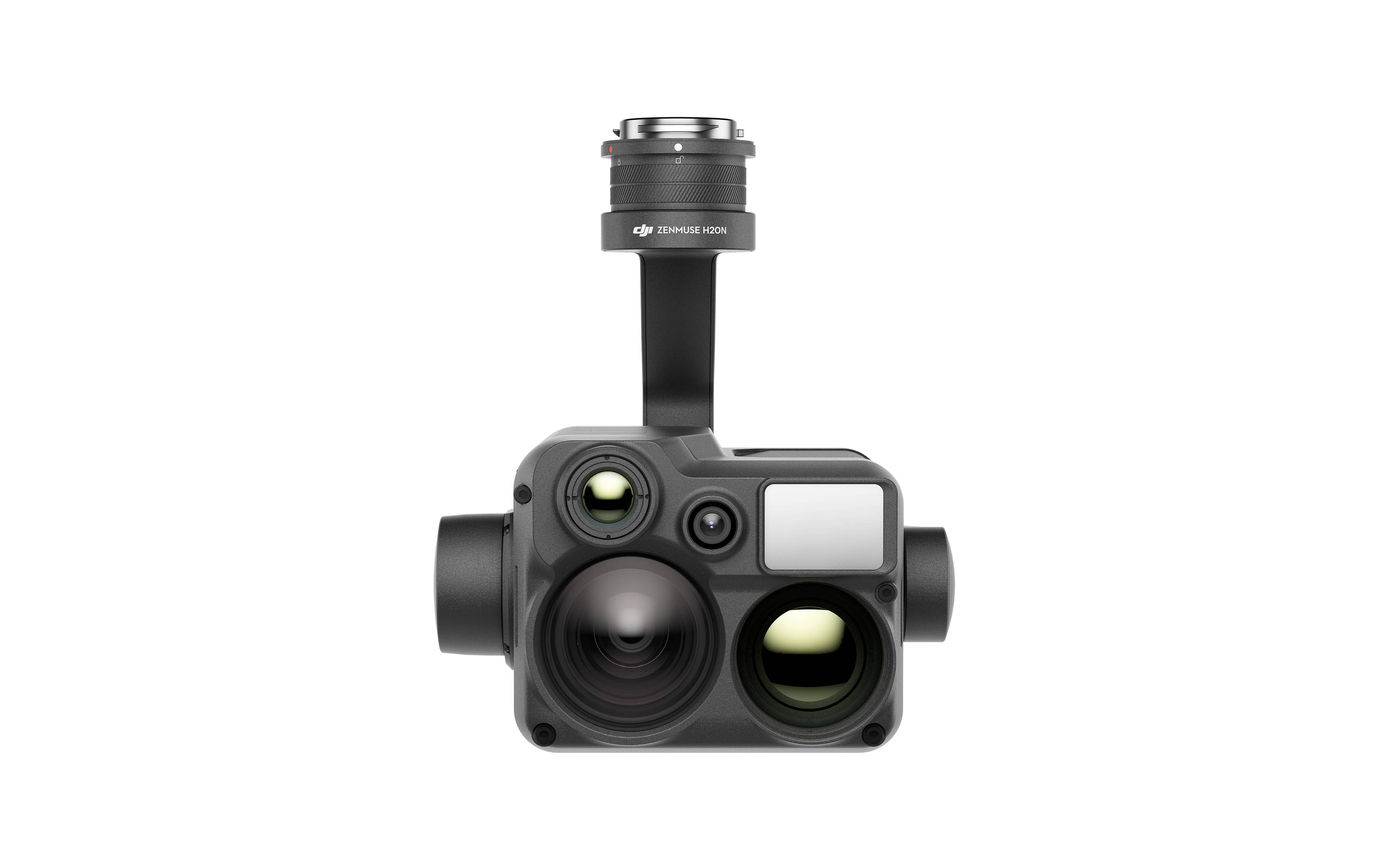

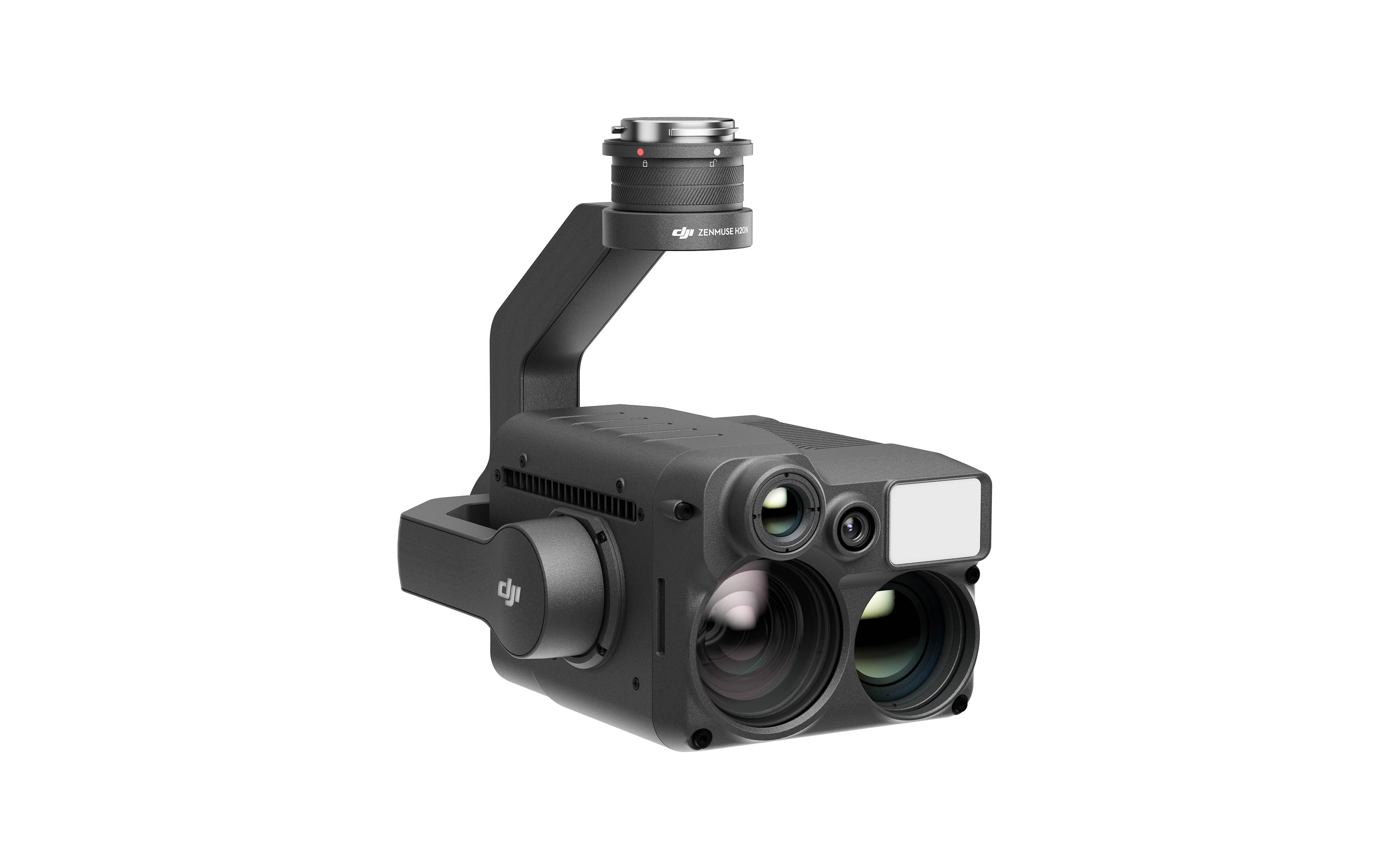

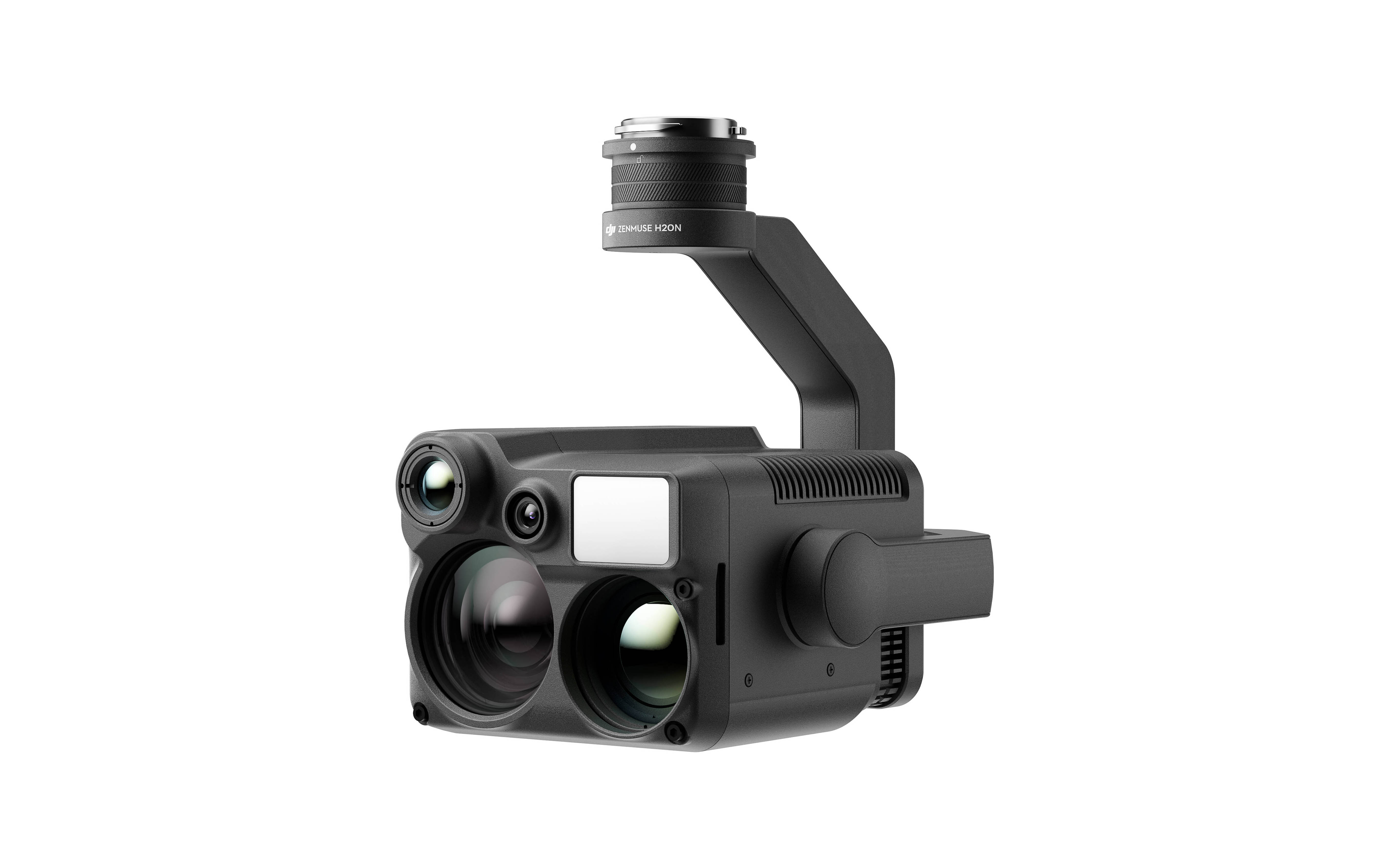

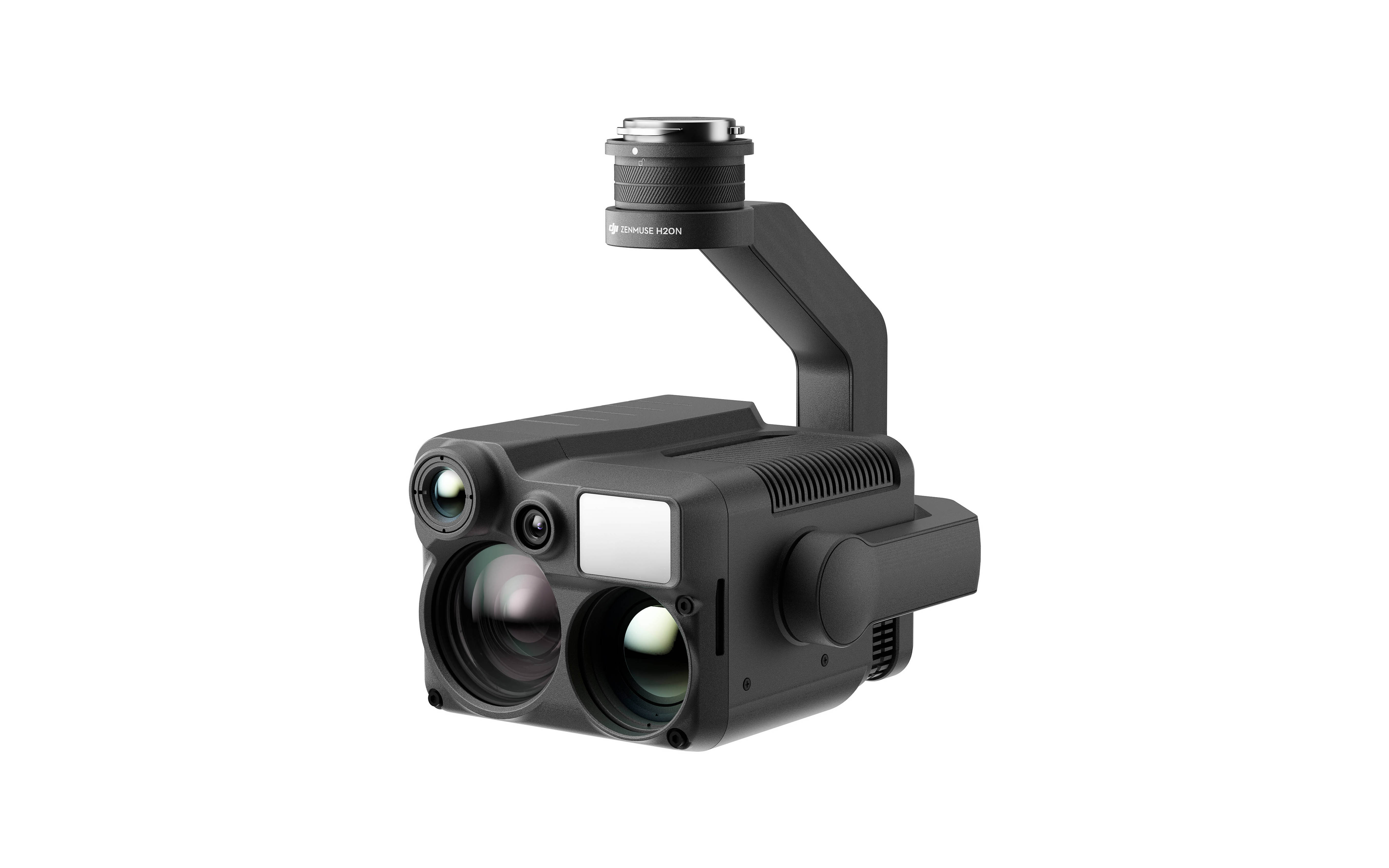

DJI Zenmuse H20N package has a Camera (no lens needed) and a Gimbal. Compatible with all DJI Matrice 300 and 350 versions. The camera has 5 cameras: a Nightvision wide camera (Starlight Sensor), a Nightvision zoom camera (20x optical, 128x Max Zoom), a Dual Thermal Zoom Camera (640x512), and a laser rangefinder (1200m range). This Zenmuse version is with the DJI Care Enterprise Basic plan.

HIGHLIGHTS

SKU: CP.ZM.00000145.01
Alternate SKU: CP.ZM.00000145.SB, CP.ZM.00000145.SP, DJI-H20N-BASIC and DJI-H20N-PLUS
DJI Zenmuse H20N options:
- DJI Zenmuse H20N SP (DJI Care Enterprise Basic)
- DJI Zenmuse H20N SP Plus (DJI Care Enterprise Plus)
The camera has 4 sensors:
- Nightvision Wide Camera
  - 1/2.7" CMOS; Effective Pixels: 2M
  - 1920×1080
  - Starlight sensor
  - Strong Low-Light performance
- Nightvision Zoom Camera
  - 1/1.8" CMOS; Effective Pixels: 4M
  - 2688×1512
  - Low-light details
- Dual Thermal Zoom Cameras
  - Uncooled VOx Microbolometer
  - Resolution 640x512
  - up to 8x Zoom
- Laser RangeFinder - 3m to 1200m range
Thermal Features:
- Color Palettes
  - Adjust colors applied to thermal data
- Isotherms
  - Band of temperatures to highlight targets
- Temp. Alarm
  - Notification if temperatures exceed
- Gain Modes
  - High Gain Mode
    - smaller temperature range but more sensitive to changes
  - Low Gain Mode
    - wider temperature range
- R-JPEG Images
  - Embedded images with temperature information
Features:
- IP44 Rating - moderate protection against solid objects and water
- Operating Temperature -20°C to 50°C
- Intelligent Night Scene Enhancement
- Starlight Night Vision System
- Synchronized Split-Screen Zoom
Compatible with DJI Matrice drones:
- Matrice 300 RTK - Dji CP.EN.00000221.01
- DJI Matrice 350 RTK - Dji CP.EN.00000468.01
- DJI Matrice 350 RTK H20T Kit - Dji CP.EN.00000522.01
Other DJI Matrice 300 accessories:
- DJI Matrice 300 RTK TB60 Intelligent Flight Battery - Dji CP.EN.00000262.01
- Zenmuse L2 - Dji CP.EN.00000505.01
- DJI Zenmuse H20 - Dji CP.ZM.00000119.01
- DJI Zenmuse L1 - Dji CP.EN.00000330.01
- DJI Zenmuse P1 - Dji CP.ZM.00000136.01

Last updated on Friday, April 17, 2026 - 14:55

Specification

Gimbal
Angular Vibration Range		±0.01°
Mount		Detachable
Controllable Range		Pan: ±320° Tilt: -120° to +60°
Mechanical Range		Pan: ±330° Tilt: -132.5° to +68° Roll: -90° to +60°
Max Control Speed		Pan: 90°/s Tilt: 90°/s

General
Product Name		Zenmuse H20N
Dimensions		178x135x161 mm
Weight		878±5 g
Protection Rating		IP44
Laser Safety		Class 1M (IEC 60825-1:2014)
Supported Aircraft		Matrice 300 RTK Matrice 350 RTK

Zoom Camera
Sensor		1/1.8" CMOS; Effective Pixels: 4M
Lens		Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm) Aperture: f/1.6-f/11 Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Focus Mode		MF/AF-C/AF-S
Exposure Mode		Manual, Auto
Exposure Compensation		±3.0 (1/3 increments)
Metering Mode		Spot Metering, Average Metering
AE Lock		Supported
Electronic Shutter Speed		Photo: 8-1/8000 s Video: 1/30-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
ISO Range		Video: 100-102400 Photo: 100-102400
Video Resolution		2688×1512@30fps 1920×1080@30fps 1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off) 1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
Video Format		MP4
Video Caption		Supported
Max Image Size		2688×1512
Photo Format		JPEG

Wide Camera
Sensor		1/2.7" CMOS; Effective Pixels: 2M
Lens		DFOV: 73.6° Focal Length: 4.5 mm (equivalent: approximately 29 mm) Aperture: f/2.8 Focus: 1 m to ∞
Exposure Mode		Auto
Exposure Compensation		±3.0 (1/3 increments)
Metering Mode		Spot Metering, Average Metering
AE Lock		Supported
Electronic Shutter Speed		Photo: 0.8-1/8000 s Video: 1/30-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
ISO Range		Video: 100-102400 Photo: 100-102400
Video Resolution		1920×1080@30fps 1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off) 1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
Video Format		MP4
Video Caption		Supported
Max. Image Size		1920×1080
Image Format		JPEG

Tele infrared thermal Camera
Thermal Imager		Uncooled VOx Microbolometer
Lens		DFOV: 12.5° Focal Length: 44.5 mm (equivalent: approximately 196 mm) Aperture: f/1.2 Focus: 45 m to ∞
Equivalent Digital Zoom		16x, 32x
Video Resolution		640×512@30fps
Video Format		MP4
Image Resolution		640×512
Image Format		R-JPEG* (16 bit raw included)
Pixel Pitch		12 μm
Spectral Band		8-14 μm
Noise Equivalent Temperature Difference (NETD)		≤50 mK @ f/1.0
Temperature Measurement Method		Spot Meter, Area Measurement
Scene Range		-20° C to 150° C (High Gain) 0° C to 500° C (Low Gain)
Temperature Alert		Supported
FFC		Auto/Manual
Palette		White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Wide infrared thermal Camera
Thermal Imager		Uncooled VOx Microbolometer
Lens		DFOV: 45.5° Focal Length: 12 mm (equivalent: approximately 53 mm) Aperture: f/1.0 Focus: 5 m to ∞
Equivalent digital zoom rate		4x
Video Resolution		640×512 @ 30 fps
Video Format		MP4
Image Resolution		640×512
Image Format		R-JPEG (16 bit raw included)
Pixel Pitch		12 μm
Spectral Band		8-14 μm
Noise Equivalent Temperature Difference (NETD)		≤50 mK @ f/1.0
Temperature Measurement Method		Spot Meter, Area Measurement
Scene Range		-20° to 150° C (High Gain) 0° to 500° C (Low Gain)
Temperature Alert		Supported
FFC		Auto/Manual
Palette		White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Range Finder
Wavelength		905 nm
Maximum Power		3.5 mW
Single Pulse Width		6 ns
Measuring Accuracy		± (0.2 m + target distance x 0.15%)
Measuring Range		3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)
Safety Regulation Level		Class 1M
Accessible Emission Limit (AEL)		304.8 nJ
Reference Aperture		18mm length, 18mm width (20.3mm diameter if equivalent to circular)
Max Laser Pulse Emission Power Within 5 Nanoseconds		60.96 W

Environment
Operating Temperature		-20° to 50° C (-4 to 122°F)
Storage Temperature		-20° to 60° C (-4 to 140°F)

Storage
Supported microSD Cards		Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
Supported File System		exFAT

In the Box

Accessories	DJI Zenmuse H20N - Dji CP.ZM.00000145.01
Zenmuse H20N Gimbal & Camera	x1
